Link Manufacturing Link Mfg 30″ Wide Flat Mount Bi-Fold Ramp Model LB20-30

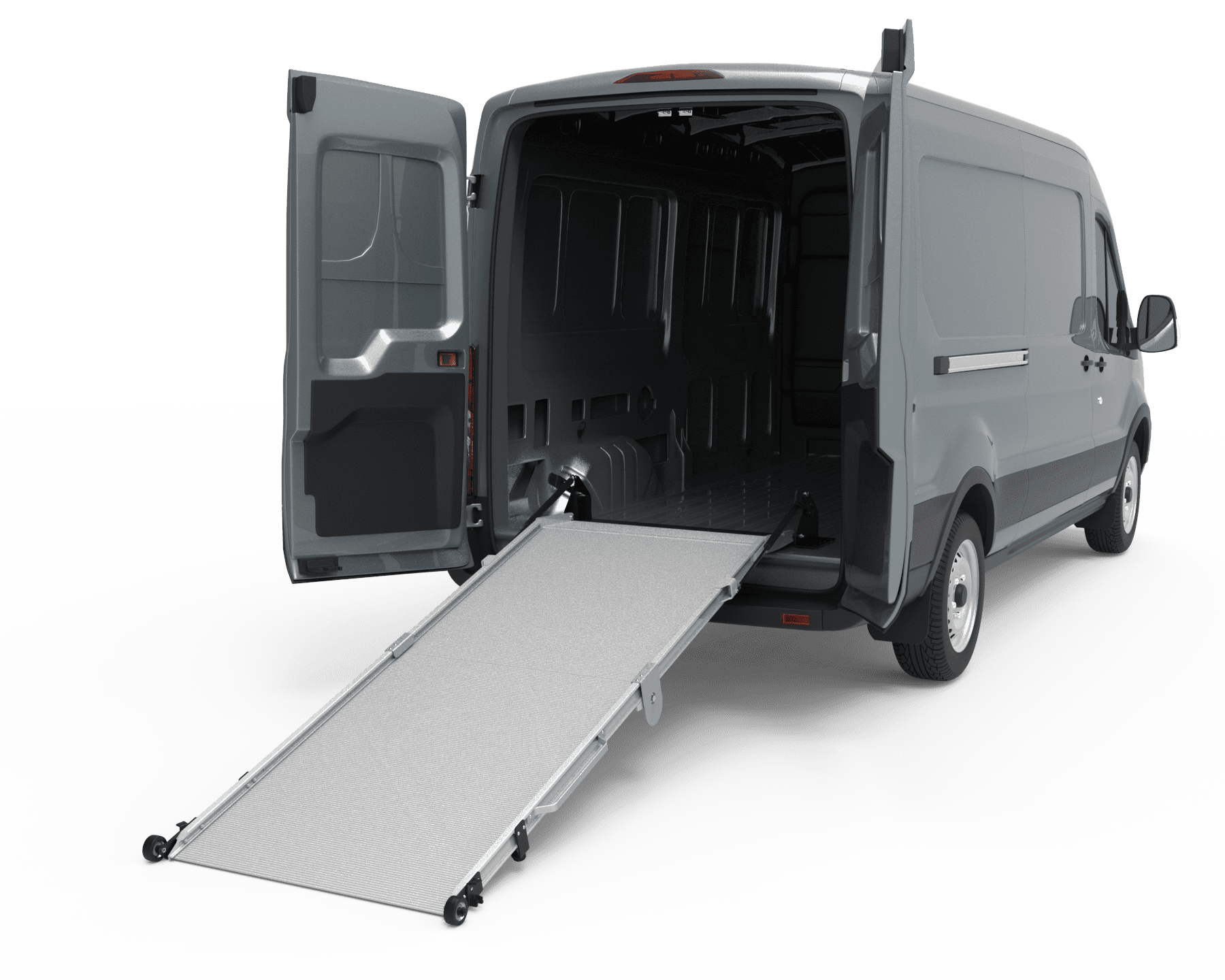

Link LB20 30″ Wide Flat Mount Bi-Fold Ramp is made from high-strength aluminum and easily installs into any vehicle with a flat surface.

The unique pull-style gas-spring-assist lifting mechanism makes the ramp easy to deploy and allows for bumper clearance of most vehicles. The ramp features a low-profile transition threshold and only takes seconds to deploy – increasing ease of use while reducing dangerous lifting and possible equipment damage.

The gas-spring-assist lifting mechanism balances the weight of the ramp for ease of use. The walking surface of the ramp has a ribbed aluminum finish for safety and durability. Wheels at the bottom of the Link LB20 assist with moving the ramp over flat surfaces.

All Link LB20 ramps ship fully assembled, include a wheel kit, and mount just inside a vehicle’s rear or side door. The ramp stores vertically, requires 11 inches of mounting space, and has a weight capacity between 1000 to 1500 pounds.

Specialty Engineered Ramp Systems ships directly from the manufacturer

FEATURES:

• High Strength Aluminum – Designed for reliability and durability using extruded high strength steel.

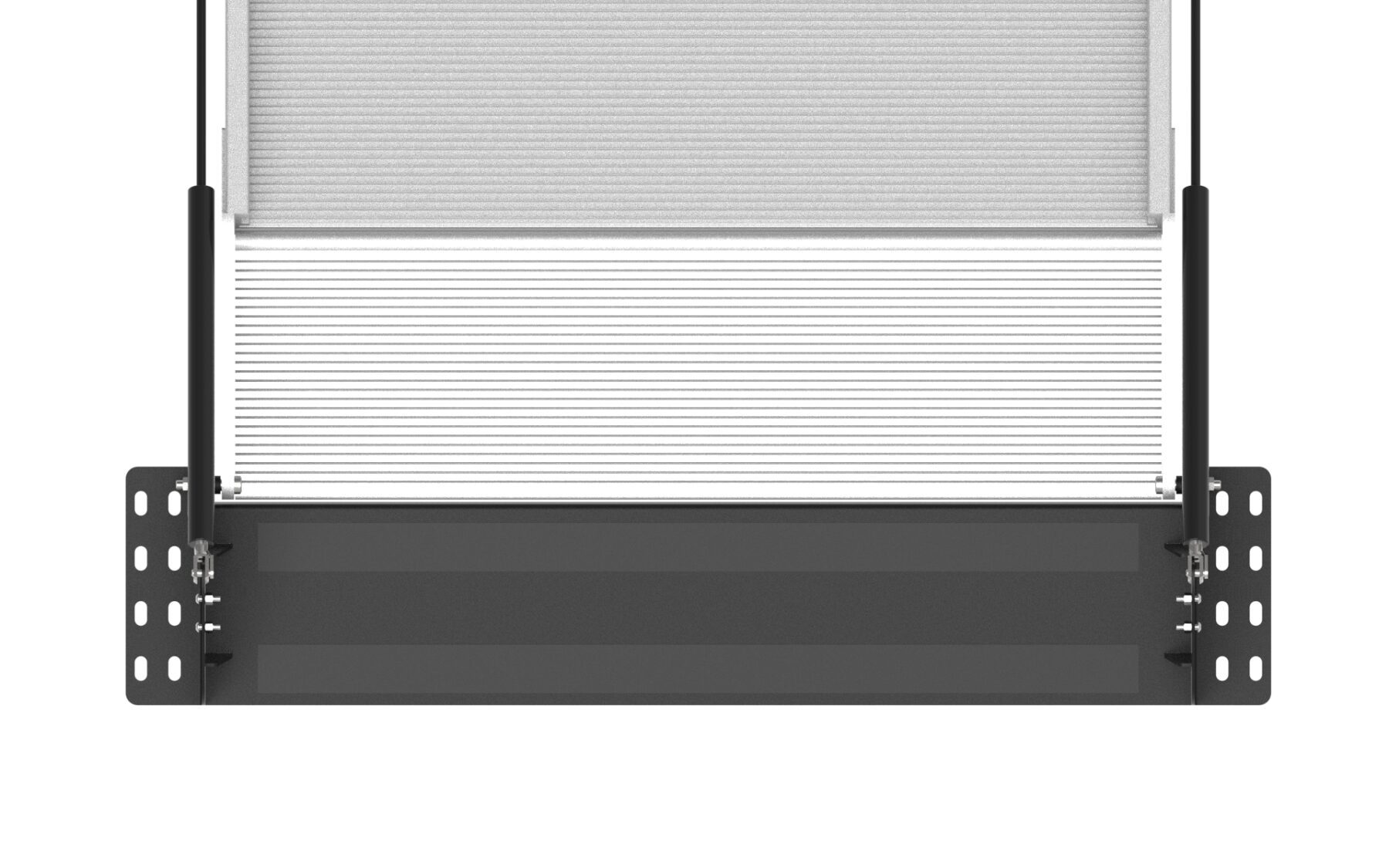

• Easy Baseplate Installation – Mounts with 4 bolts on a flat surface and requires 11 inches of mounting space.

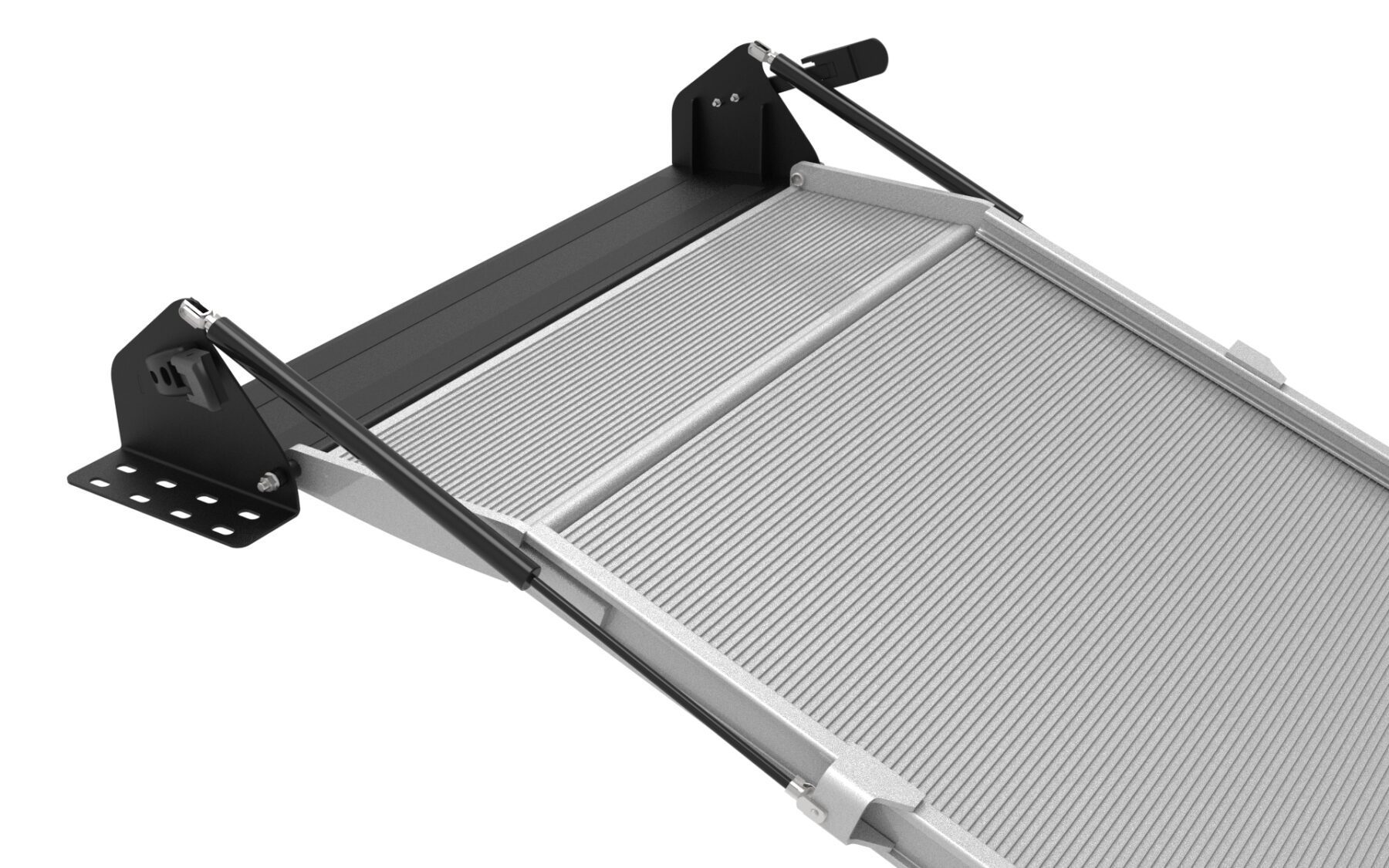

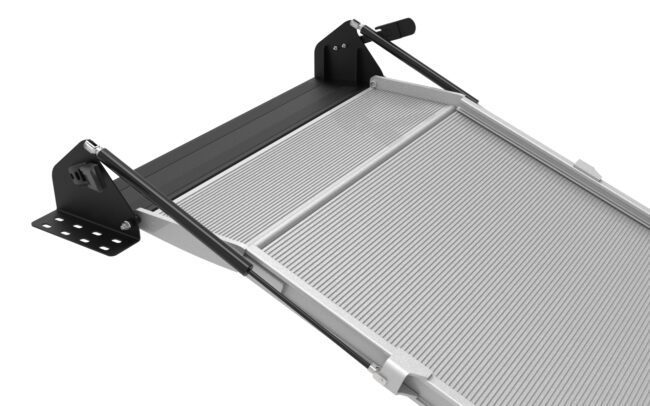

• Reduce Lifting With Spring Assist – Gas-spring-assist lifting mechanism makes ramp easy to deploy and stow.

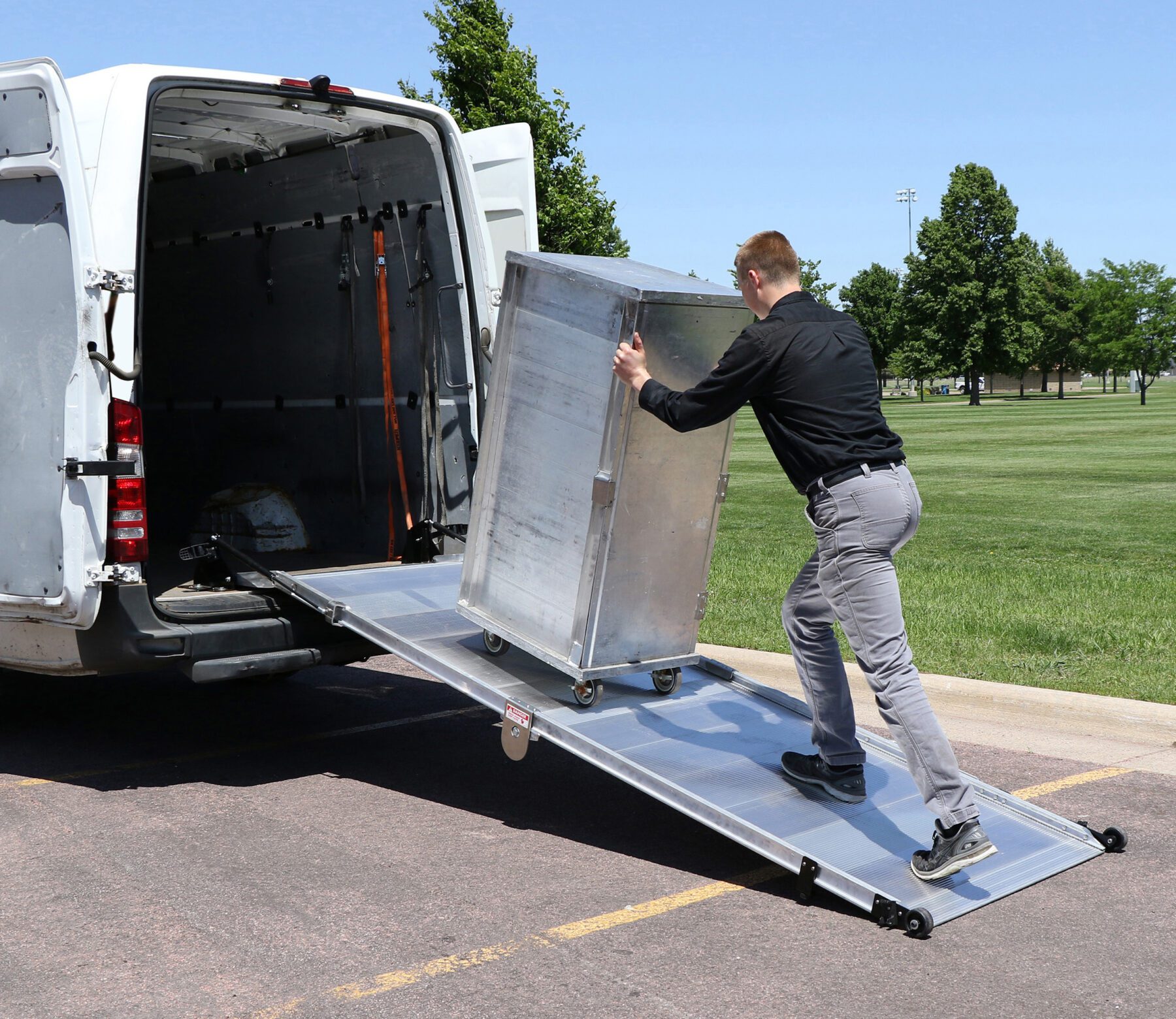

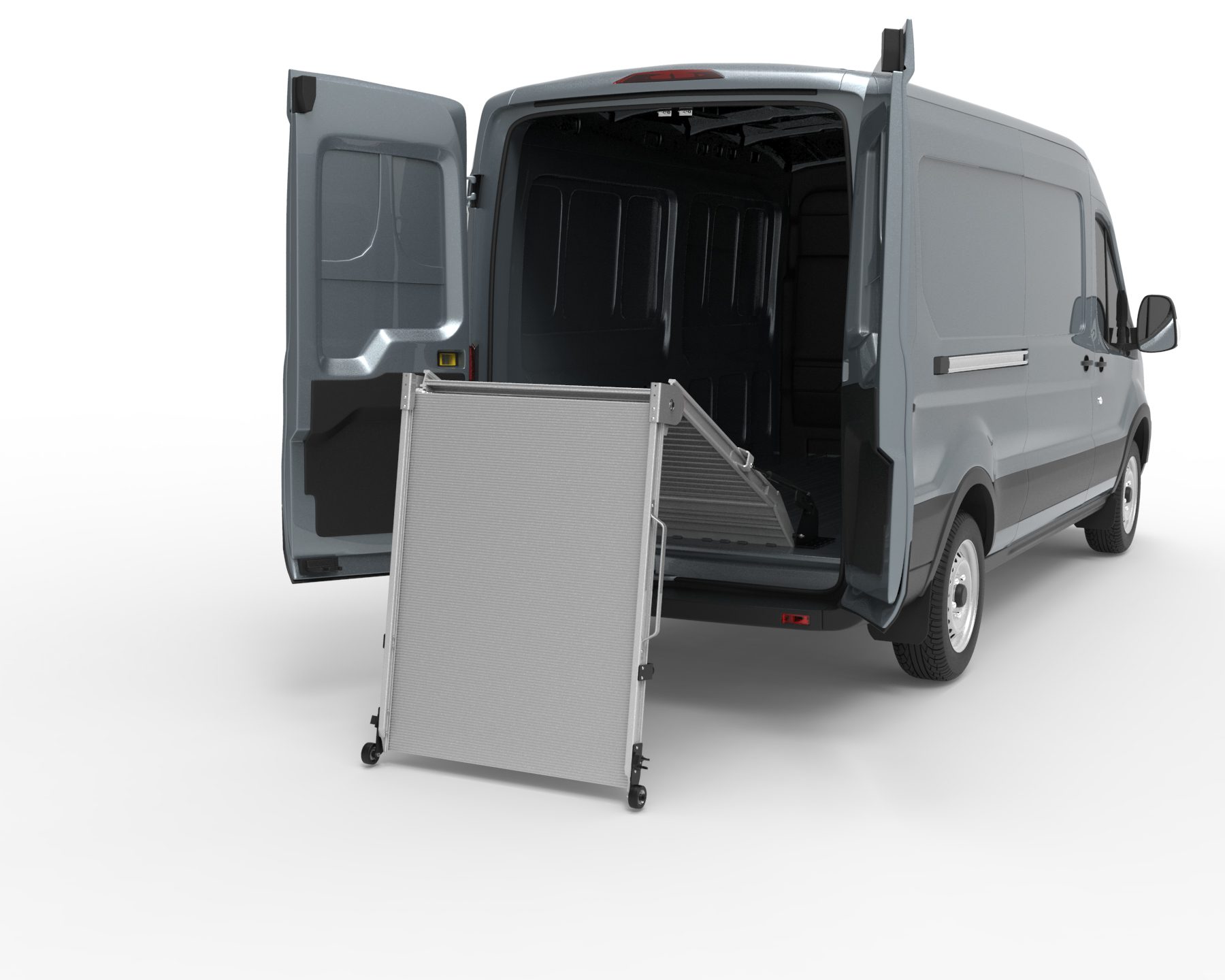

• Quick Unloading & Loading – Easy to release and deploy with quick-release latches and sturdy hinge points.

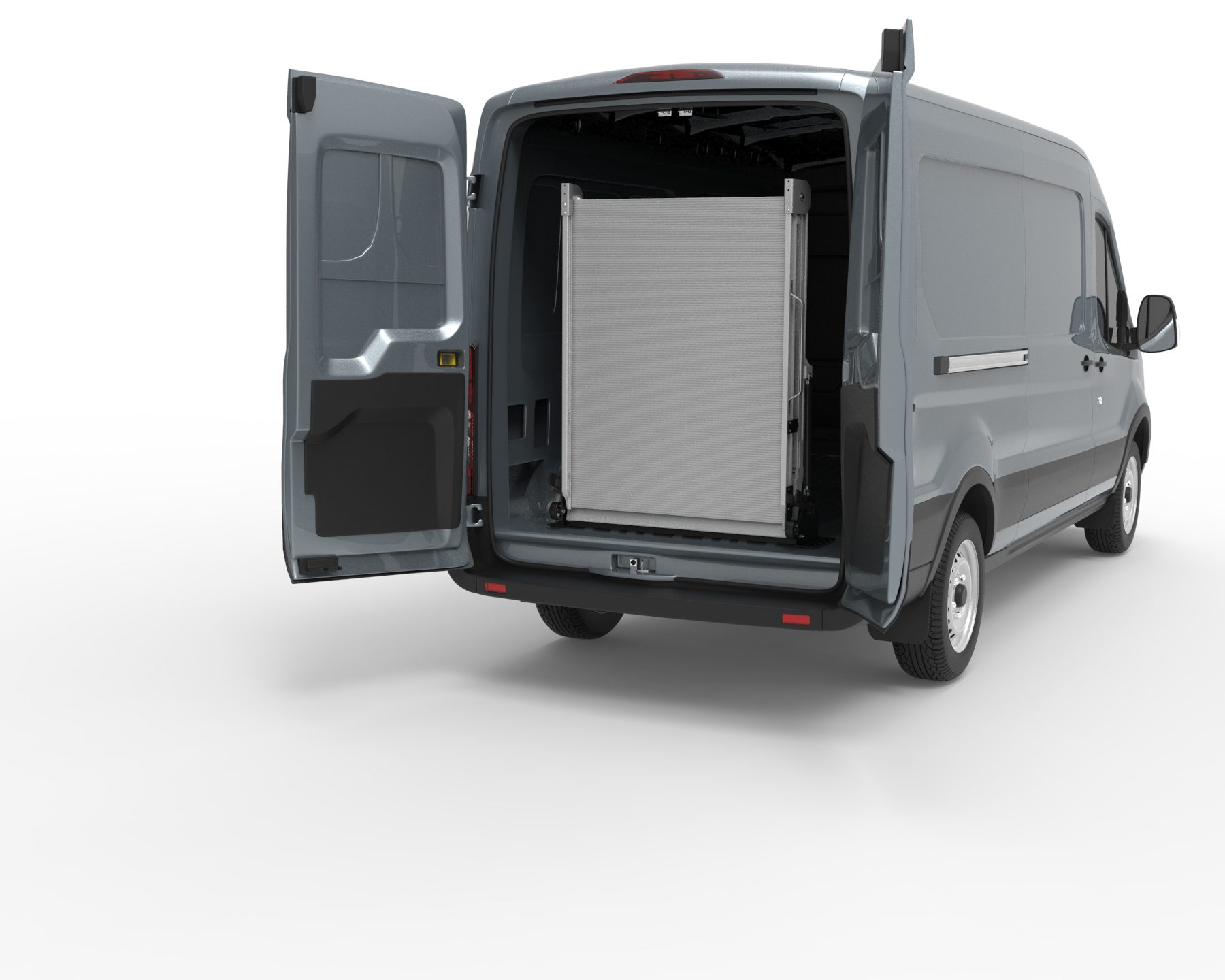

• Dead Space Storage – Ramp stores vertically and folds in half to collapse to roughly 7.5 inches in depth.
• Standard Wheel Kit – Helps deploy and stow the ramp smoothly on uneven surfaces.

The LB20 flat mount bifold design is 30 inches wide and also available in 36″ wide or 47″ wide.

Available Lengths 72”, 81”, 99”, 108”.  Note that the spring-assist is not available on the 72” & 81” lengths.

Please select desired length from the drop-down menu above.

See ramp Fit Guide below for your vehicle
