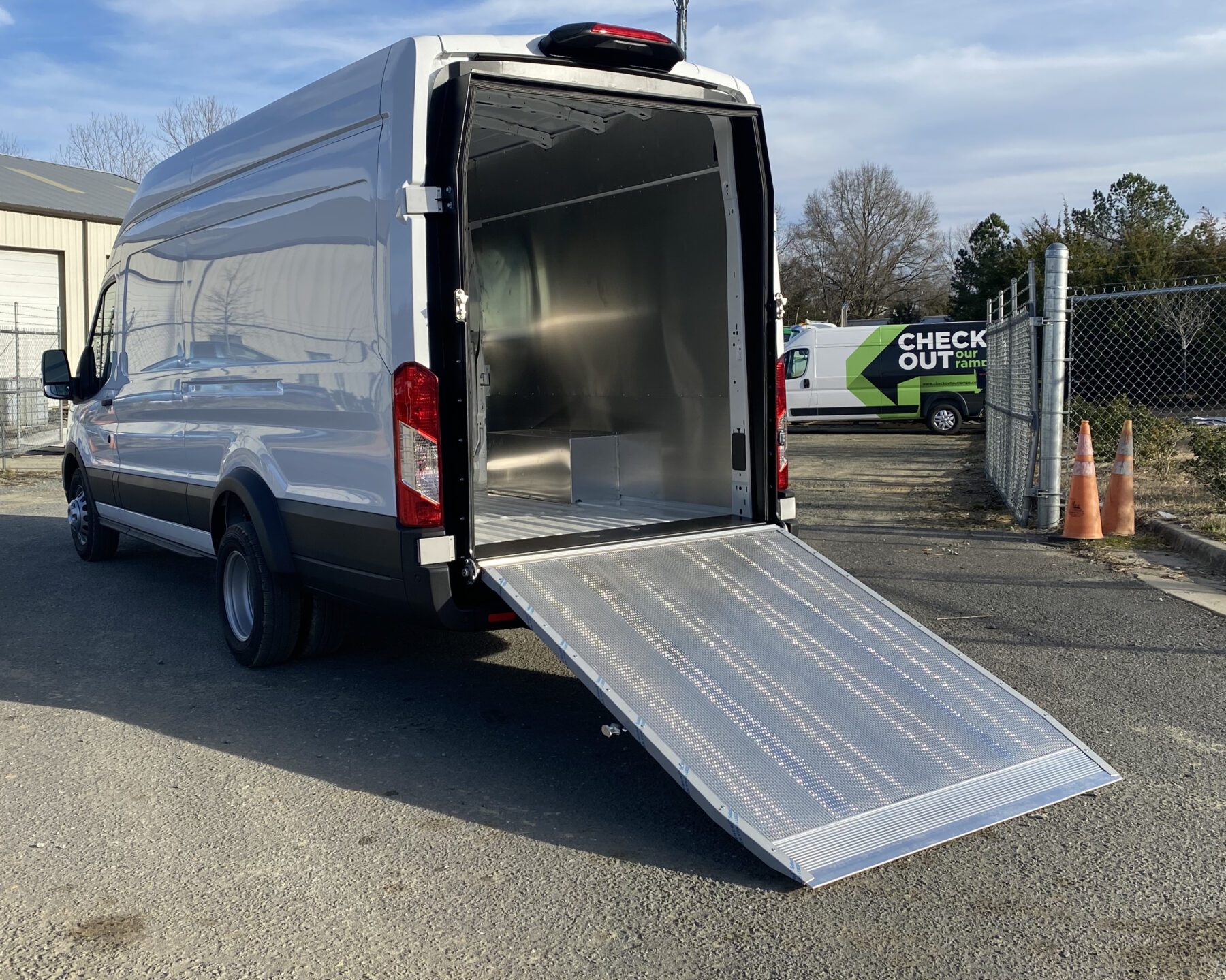

Check out our ramp installed on a Ford Transit (shown fully open.)

Cut away showing the inside construction on an aluminum Check Out Our Ramp.

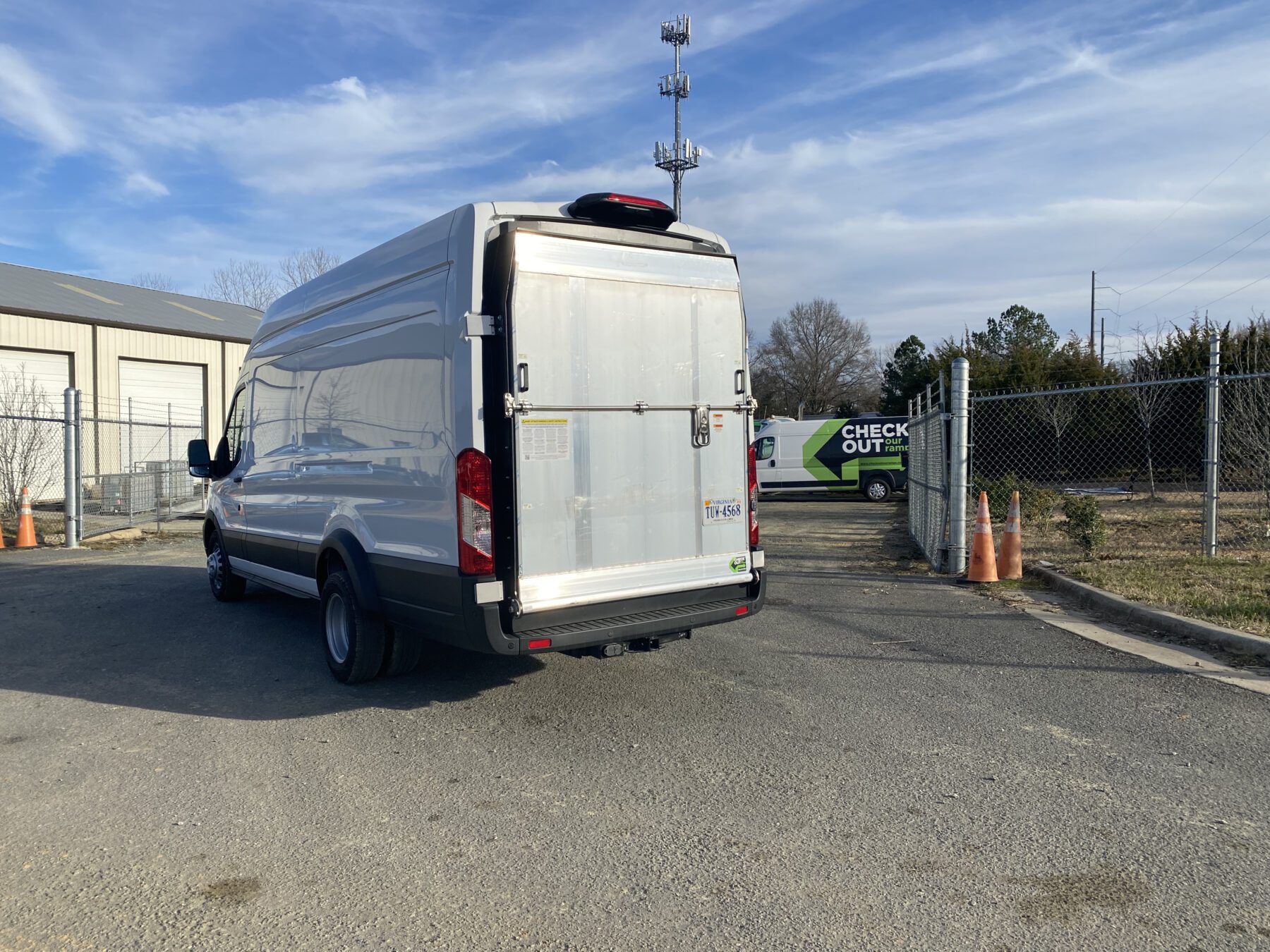

The back of a Ford Transit with the ramp liftgate and backdoors closed.

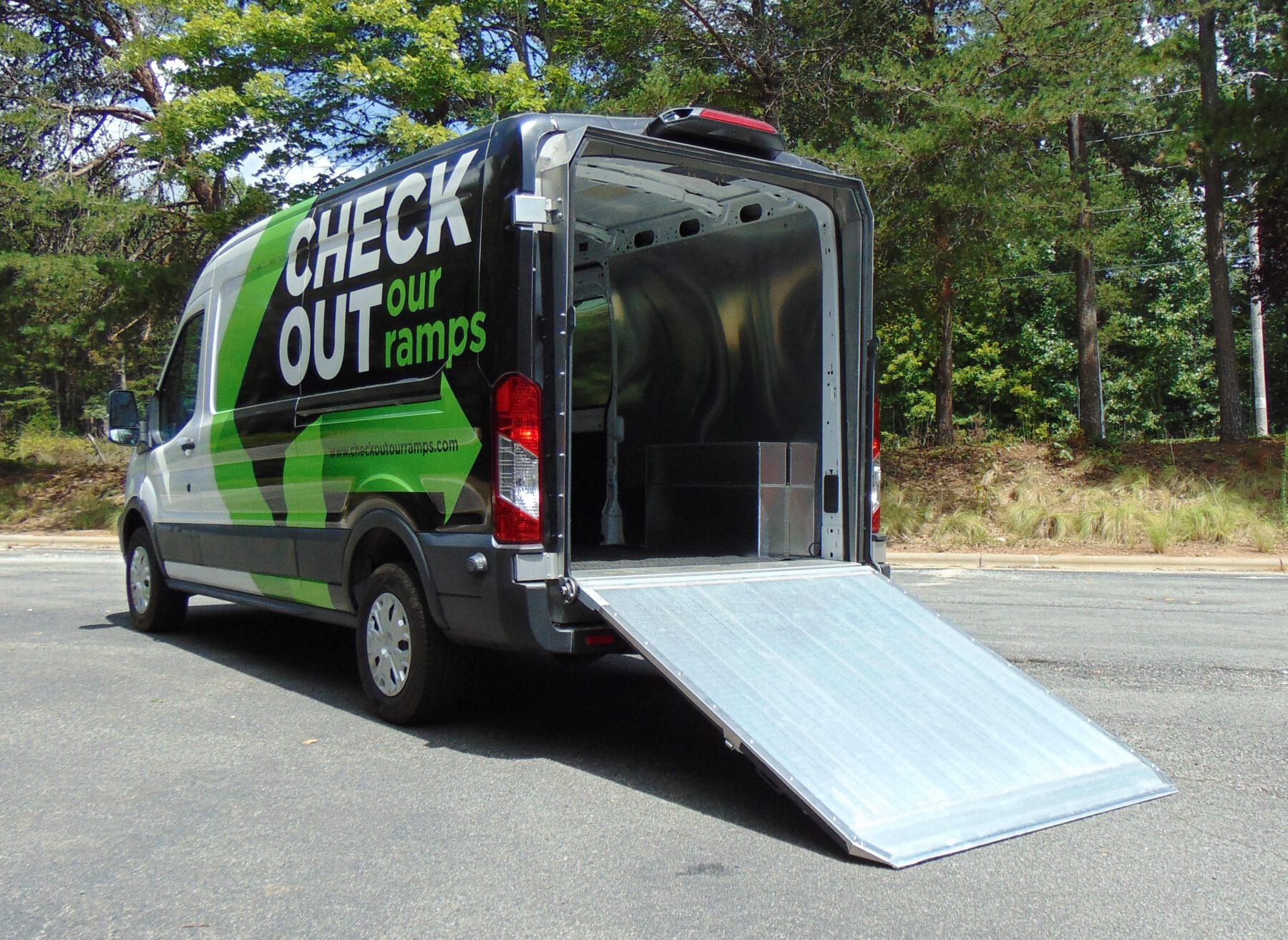

Check out our ramp installed on a Ford Transit van. Shown fully open as a ramp.

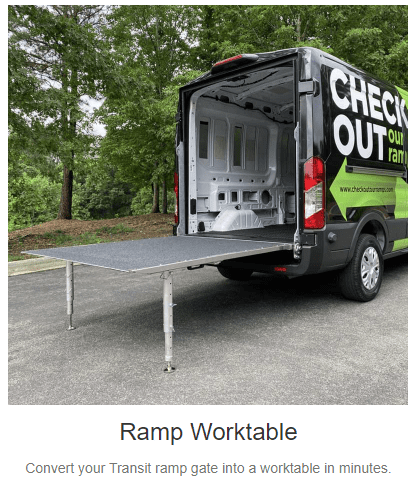

Check out our ramp installed on a Ford Transit van. Shown fully open with ramp worktable.

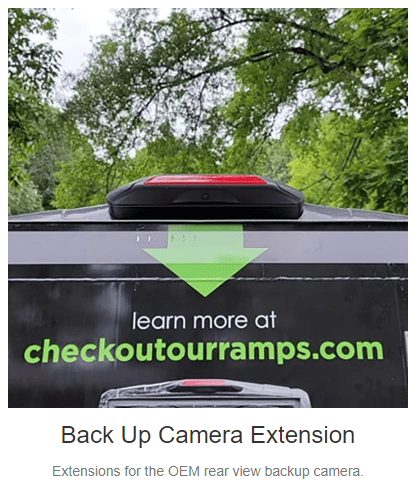

Check out our ramp installed on a Ford Transit. Shown fully open with backup camera extension.

Check out our ramp installed on a Ford Transit shown fully open with man loading an appliance.

Check out our ramp installed on a Ford Transit shown fully open with man loading a motorcycle.

Check out our ramp installed on a Ford Transit shown fully open with man loading a riding lawnmower.

Check out our ramp installed on a Ford Transit shown fully open with man loading equipment.

Check Out Our Ramps Check Out Our Ramps Ford Transit Ramp Liftgate

Name: Check Out Our Ramps Ford Transit Ramp Liftgate
Brand: Check Out Our Ramps
SKU: COOR-TRS-
Availability: InStock

Catalog Number: COOR-TRS-

Description: Built-in ramp system allows safe and easy access to your van. Manual lift system with no hydraulics or electrical hookup needed. Full-width for max loading and surface traction. Includes backup camera extension. Weight capacity 2,200 lbs.

Weight: 350lbs

Select Roof Height

Accessories

Price: $6,309.21

Built-In Ramp System for the Ford Transit Cargo Van is designed to make unloading and loading a breeze! This ramp provides 29 square feet of platform area to maximize safety and working space. And with a 2,200 lb weight capacity, there’s not much this ramp can’t handle. Opening and closing the ramp lift gate takes only seconds and makes loading and unloading safe and effortless.

Whether you’re a landscaper, or you deliver cleaning supplies and equipment, make your day more productive and efficient with a ramp gate that will truly make your day safer and easier.

Fits Ford Transit Medium & High Roof Vans (select in dropdown above). Replaces rear cargo doors.

Ramp Specifications	Medium Roof	High Roof
Size L x W	69″ x 60.5″	74.5″ x 60.5″
Weight	350 lbs	350 lbs
Platform Area	29 sq ft	31.3 sq ft
Capacity	2200 lbs	2200 lbs
Pitch without extenders	23 degrees	21.65 degrees
Pitch with extenders	15.5 degrees	16.85 degrees

While most ramp systems use single panel construction, Check Out Our Ramps uses a dual-panel extrusion process with reinforcement in between. This reinforced I-RIB technology incorporates an extruded, mini-aluminum rib, spaced every 2” between dual-panels used in our ramp lift gates. With a weight rating of 2,200 pounds, these are considered one of the safest and strongest ramps in the industry!

We over-built our ramp systems on purpose, for your safety and efficiency. You might spend a few extra dollars for our ramp gates, however, you get what you pay for, and Check Out Our Ramps wants you to have the best!

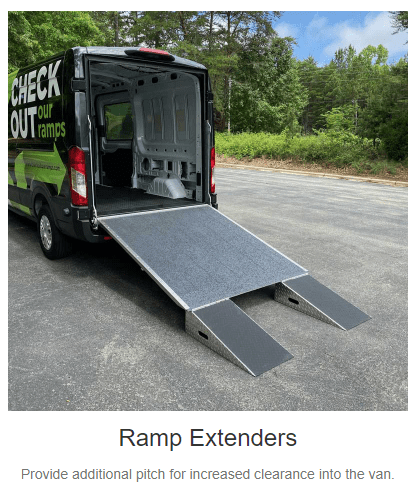

Extend ramp functionality even further with accessories available in the dropdown above: Ramp extenders, worktable legs, and backup camera extension.
